Equipment for Hire
Emmess offer a wide range of augers, casing rigs and tooling ranging from 300mm – 2100mm with CFA and SFA options, all are available throughout the UK Ireland and Europe. Emmess can provide long term and short hire and are proud to be part of the Construction Plant Hire Association (CPA).
Rig Hire

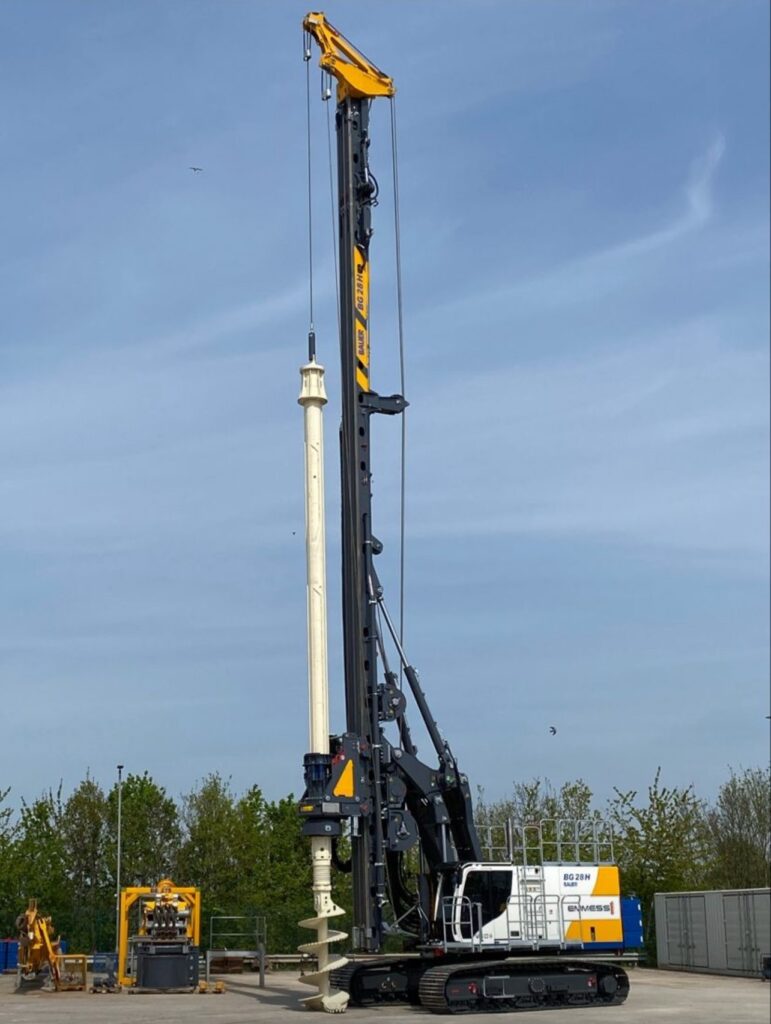

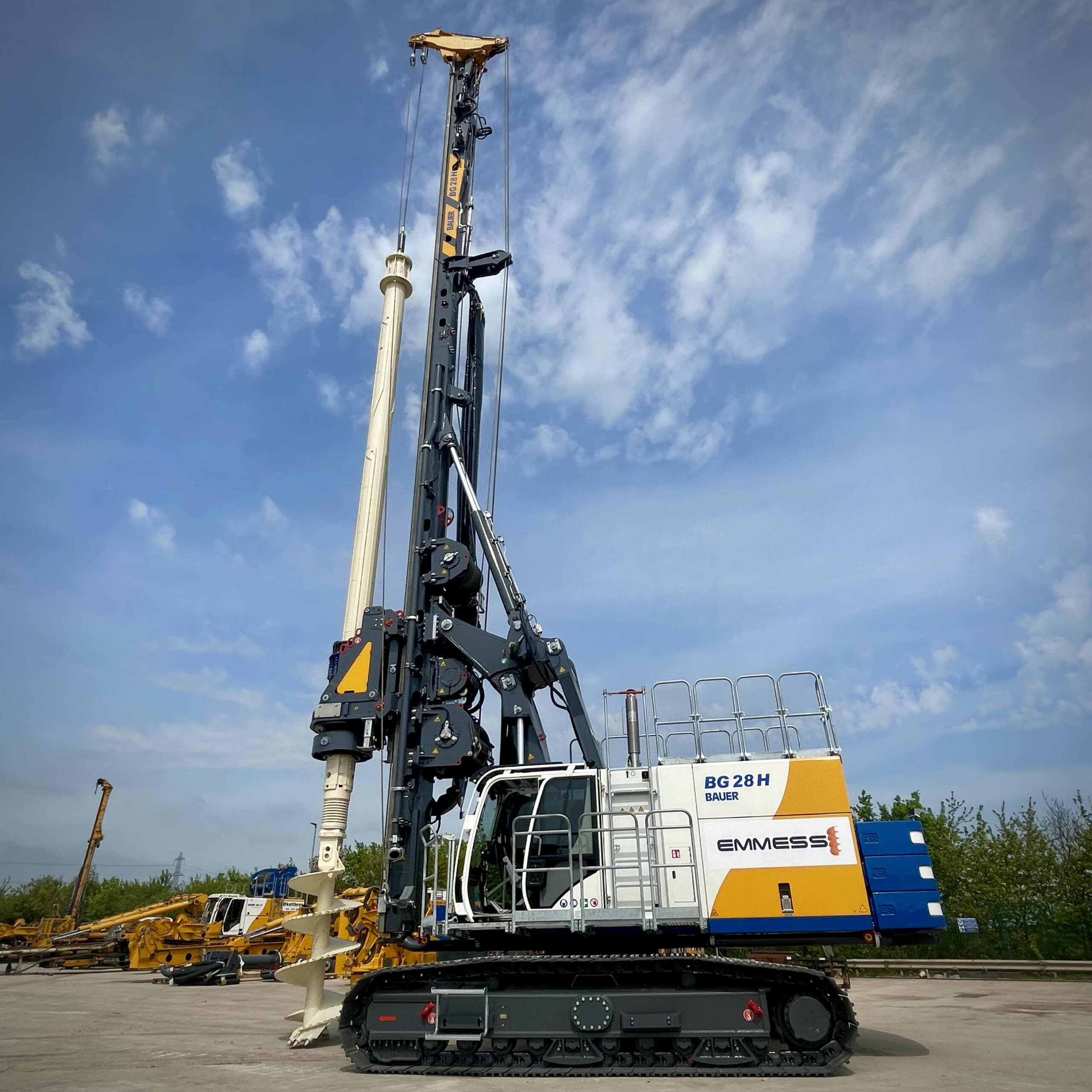

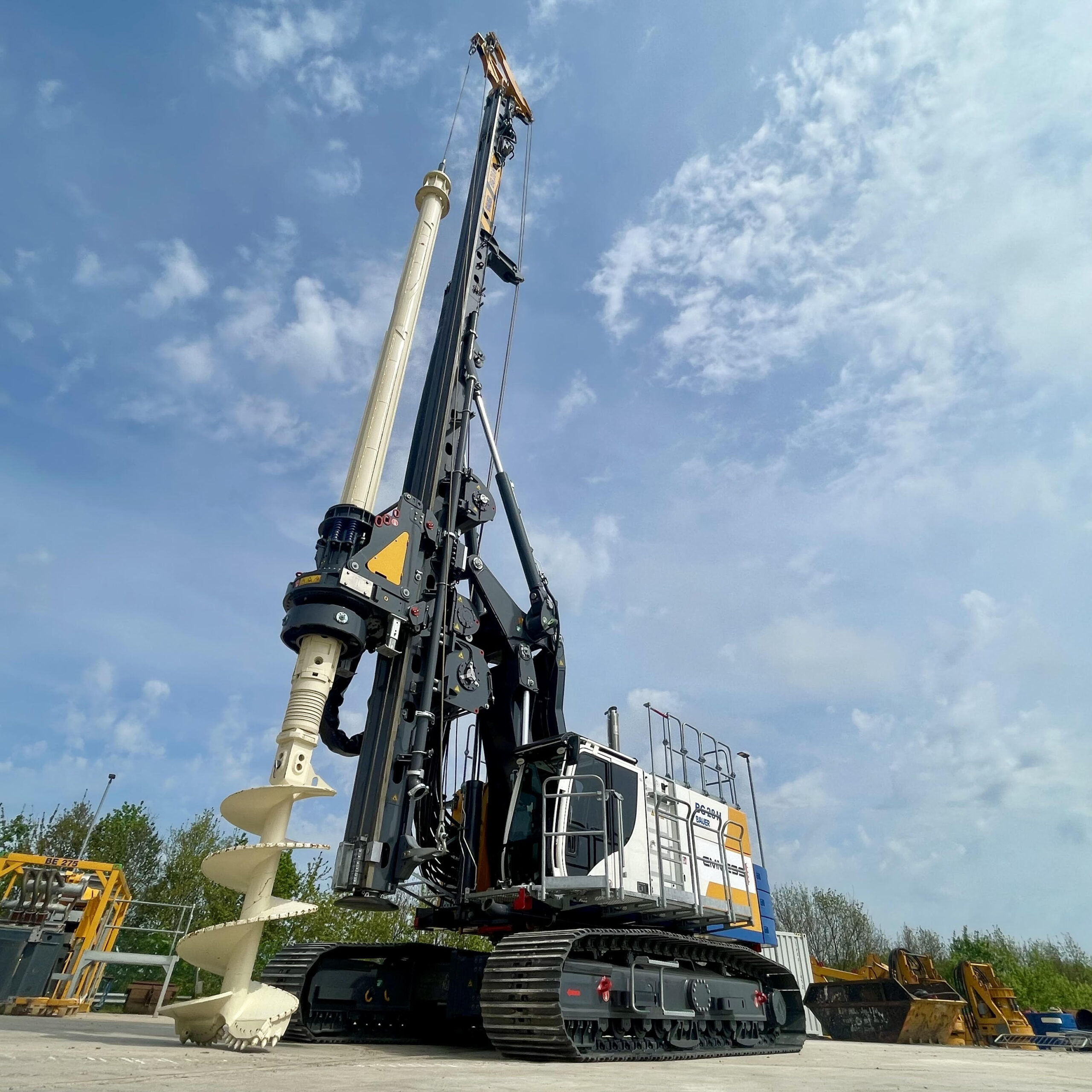

Drilling Rig

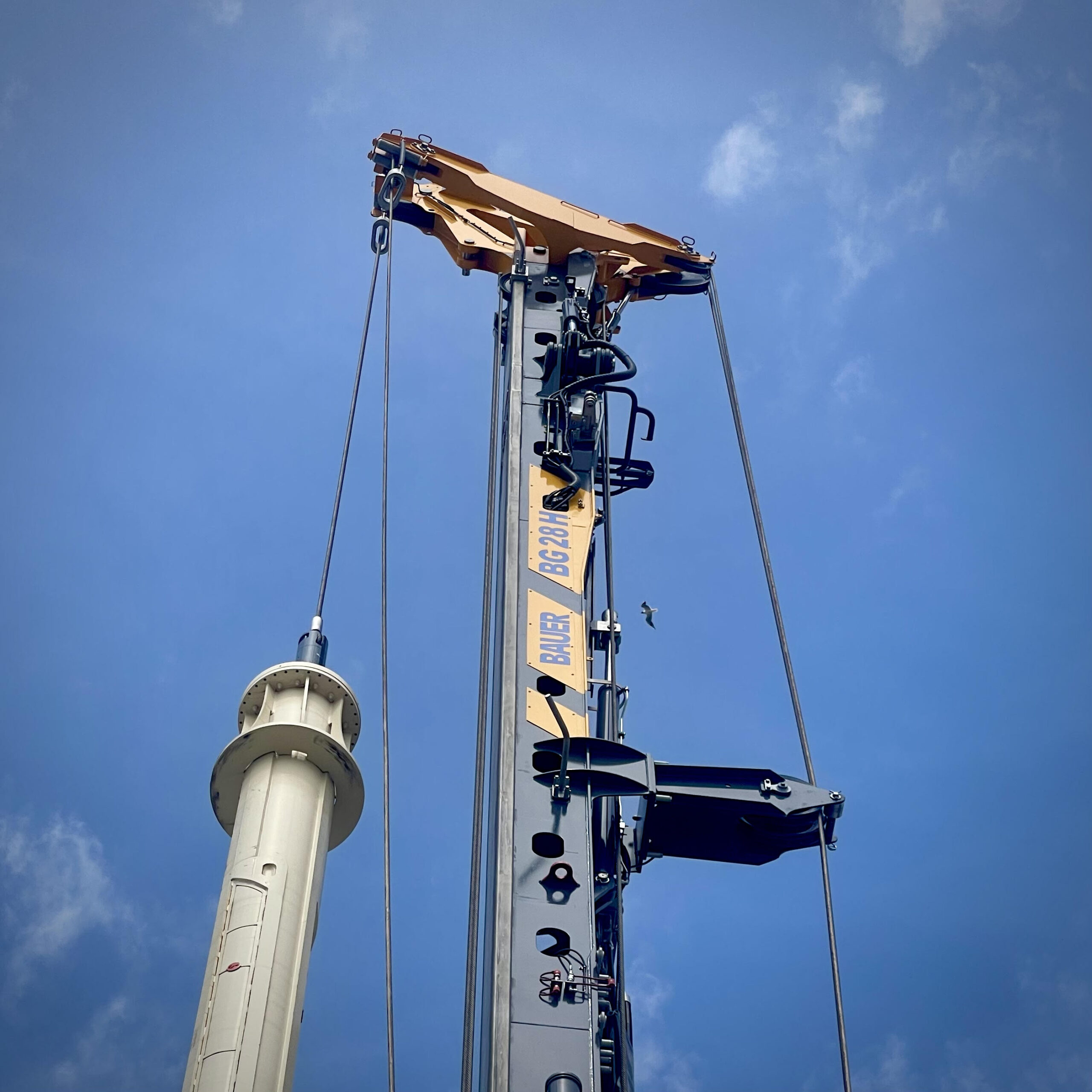

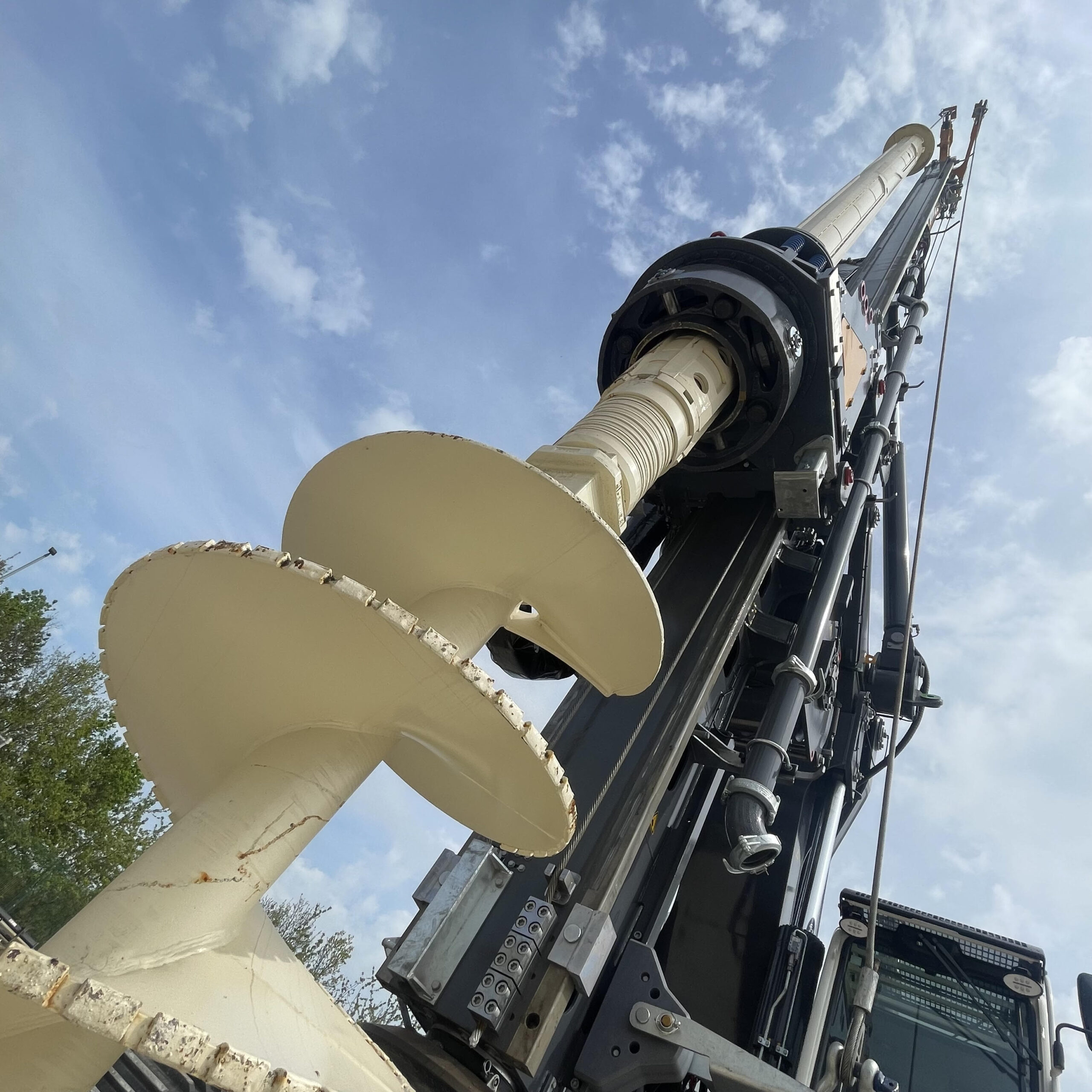

BAUER BG 28 H
Our multifunctional BG 28 H on the BT85 base carrier is suited for Kelly drilling, soil mixing techniques and for carrying out soil improvement measures.
The selection between two model ranges allows an optimum choice for differing project or transportation requirements.
Specifications
▪ BAUER BT85 Base carrier with integrated service platforms
▪ Stage V Volvo TAD 13 engine
▪ BAUER EEP (Energy Efficient Power) package
▪ UW80 undercarriage with 900mm track pads for reduced ground
bearing pressures
▪ Additional EM stops and camera’s, fully HS2 compliant
▪ 200 kN Single Layer Main Winch
▪ 330 kN Crowd winch equipped with Crowd plus assistant to boost
extraction force to 595 kN
▪ Multi Remote control for rigging / de-rigging operations
▪ Vario Mast head for quick conversion
▪ Rotary head with 285KNm torque output and high-speed drilling gear
▪ Standard 1000mm drill axis with hydraulic bolting crowd sledge.
Capabilities
▪ Rig setup for Kelly, CFA, FDP, Rigid inclusions and Soil Mixing
▪ 1,400mm cased or 1,700mm uncased max. Kelly drilling diameter
▪ CFA max. dia. 1200mm, max. depth ~26m
▪ FDP / Rigid inclusion max. tool 620mm, max. depth 25.5m
1 Available
Vertical Drilling Rig

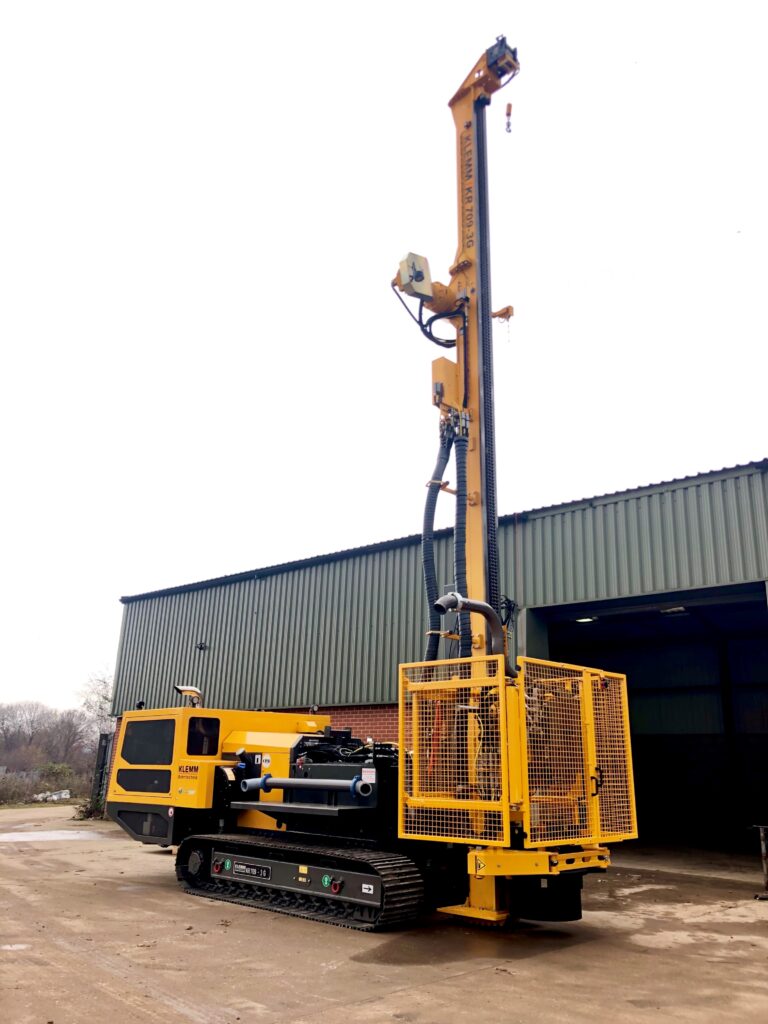

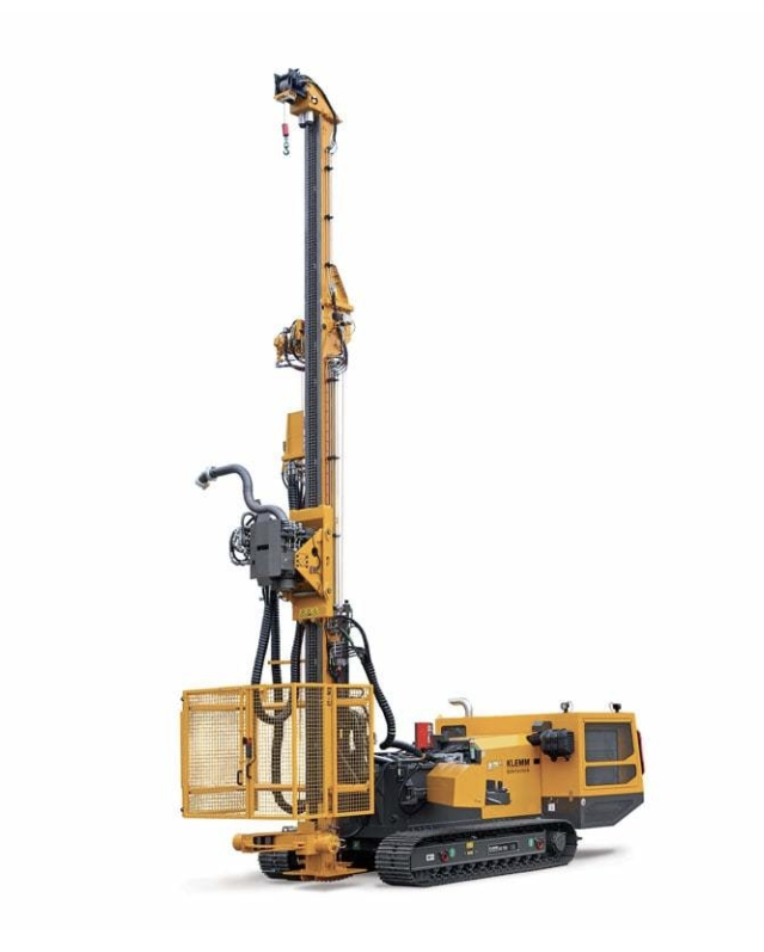

KLEMM KR 709-3G
Rig available for hire with or without the ND Technology
PL3000CFA pile monitoring system fitted with the latest direct drive depth sensor for improved accuracy and fully downloadable pile data on request, more information on this equipment available if required.
Specifications
▪ Tier 4 final Volvo engine 160 kWKH53 rotary head
▪ 450mm augers down to +30m depth
▪ Max. auger dia. 600mm
▪ Clamp size 278 – 660mm dia
▪ 4.5 metre stroke on short mast / 7 metre stroke with long mast
▪ Additional short mast available for restricted access working
▪ Total height 5,442mm
▪ Rotary travel 2,769mm
▪ Suits 2,000 – 2,500mm auger/drill rod sections
▪ Feed/retract force 130k (as standard)
▪ Max torque 53.0 kNm (as standard)
3 Available

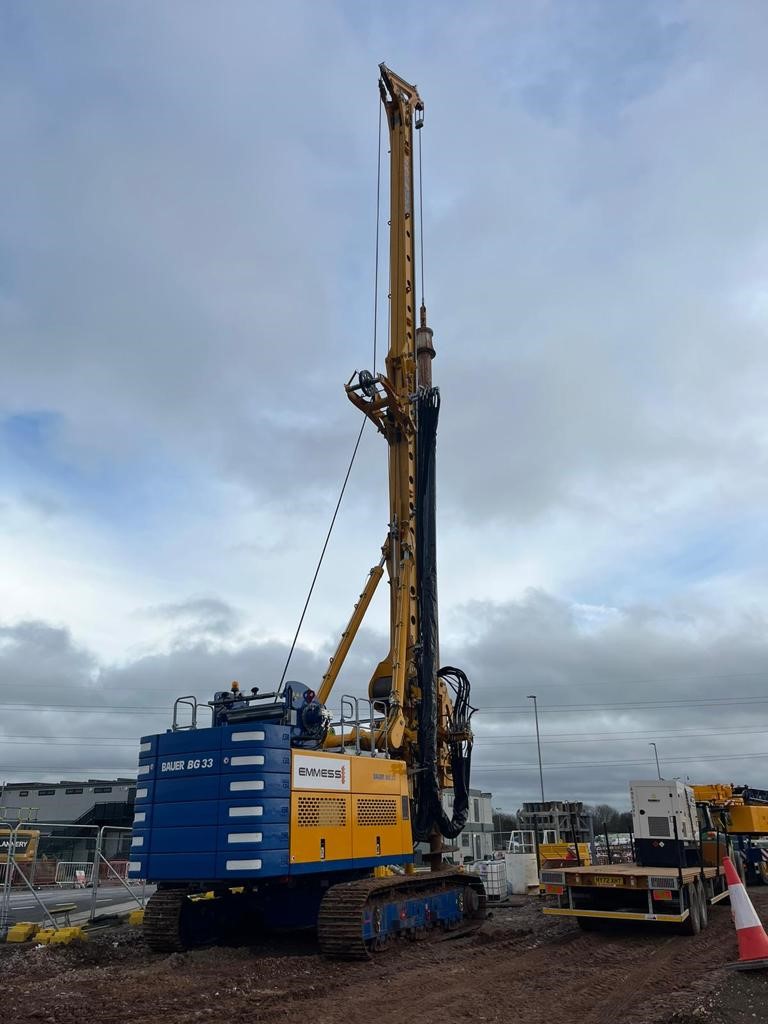

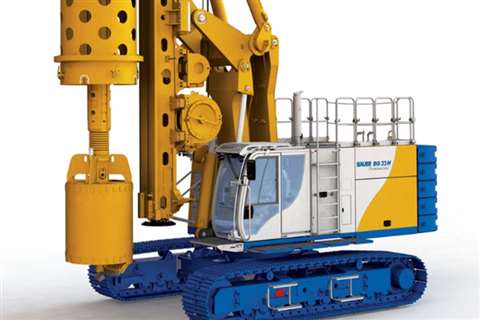

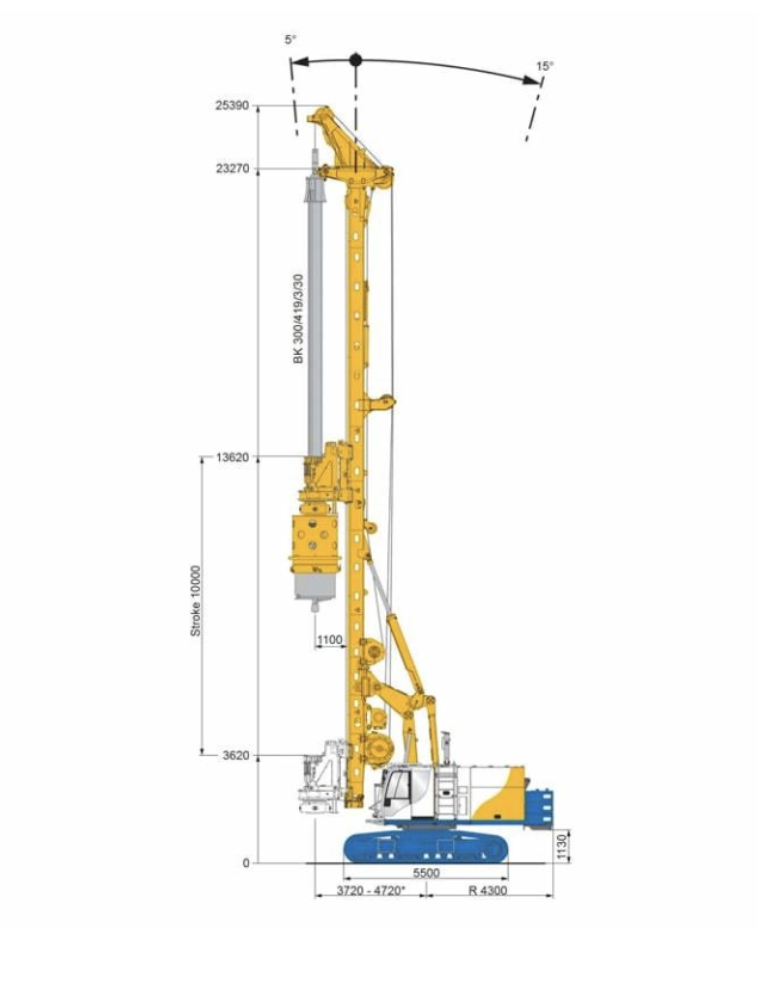

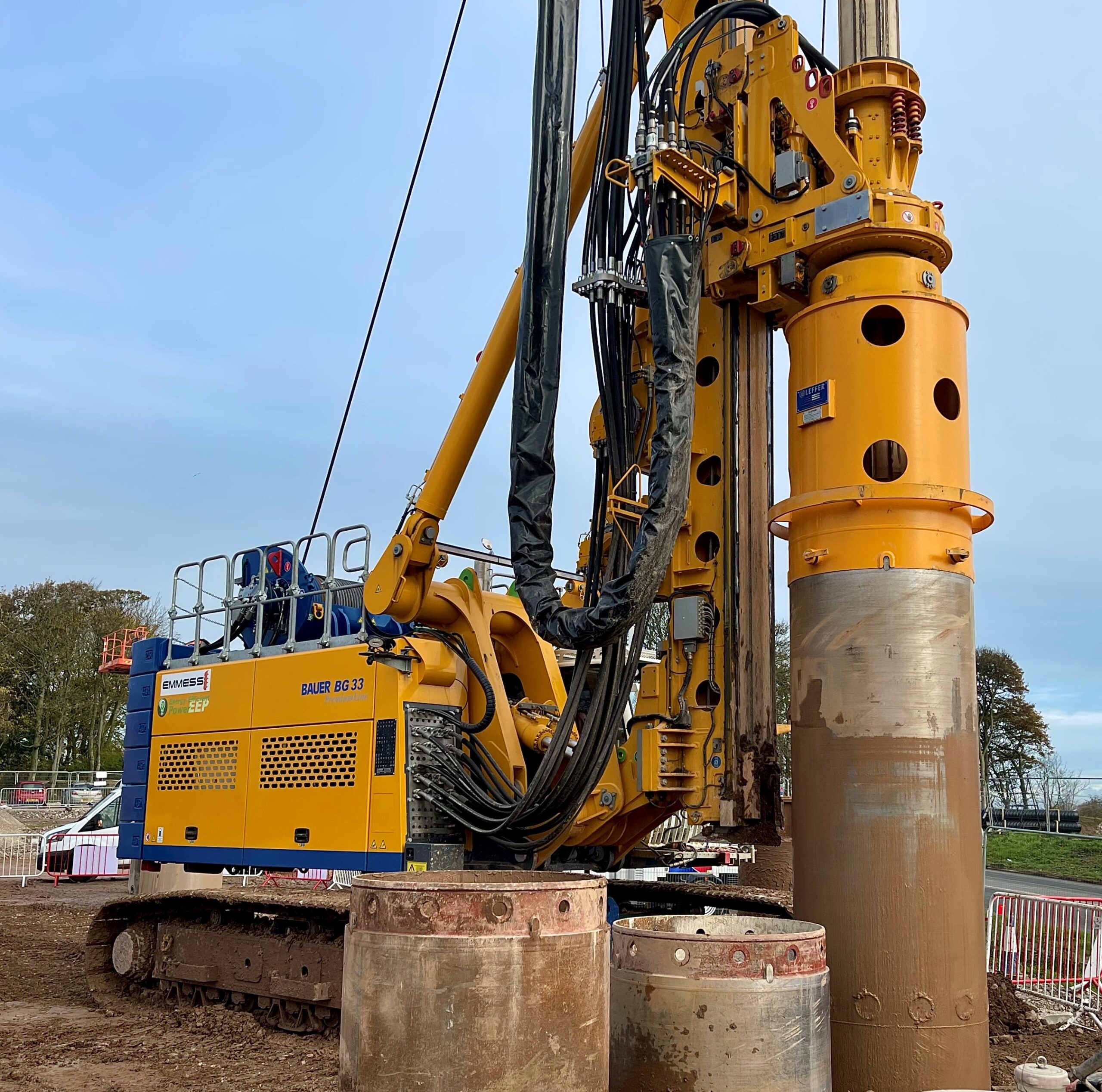

Rotary Drilling Rig
BG33 Premium line
Fast loading onto transport vehicles, easy rigging and rapid shifting to new working positions. Powerful drilling rig for kelly driving, soil mixing techniques and carrying out soil improvement measures.
Specifications
BAUER BT85 Base carrier with integrated service platforms
- Stage V Caterpillar C13 engine
- BAUER EEP (Energy Efficient Power) package
- Upgraded UW100 undercarriage with 900mm track pads for reduced ground bearing pressures
- 265 KN Single Layer Main Winch
- 330 kN Crowd winch equipped with Crowd plus assistant to boost extraction force to 595 kN
- Multi Remote control for rigging / de-rigging operations
- Vario-mast extension
- Rotary head with 300 KNm torque output and high speed drilling gear Standard 1100mm drill axis. Option of 1400mm drill axis extension kit if required
Capabilities
- 2200mm cased or 2500mm uncased maximum drilling diameter
- Supplied with 4 stage 48m Kelly bar. Other Kelly options are available
2 Available

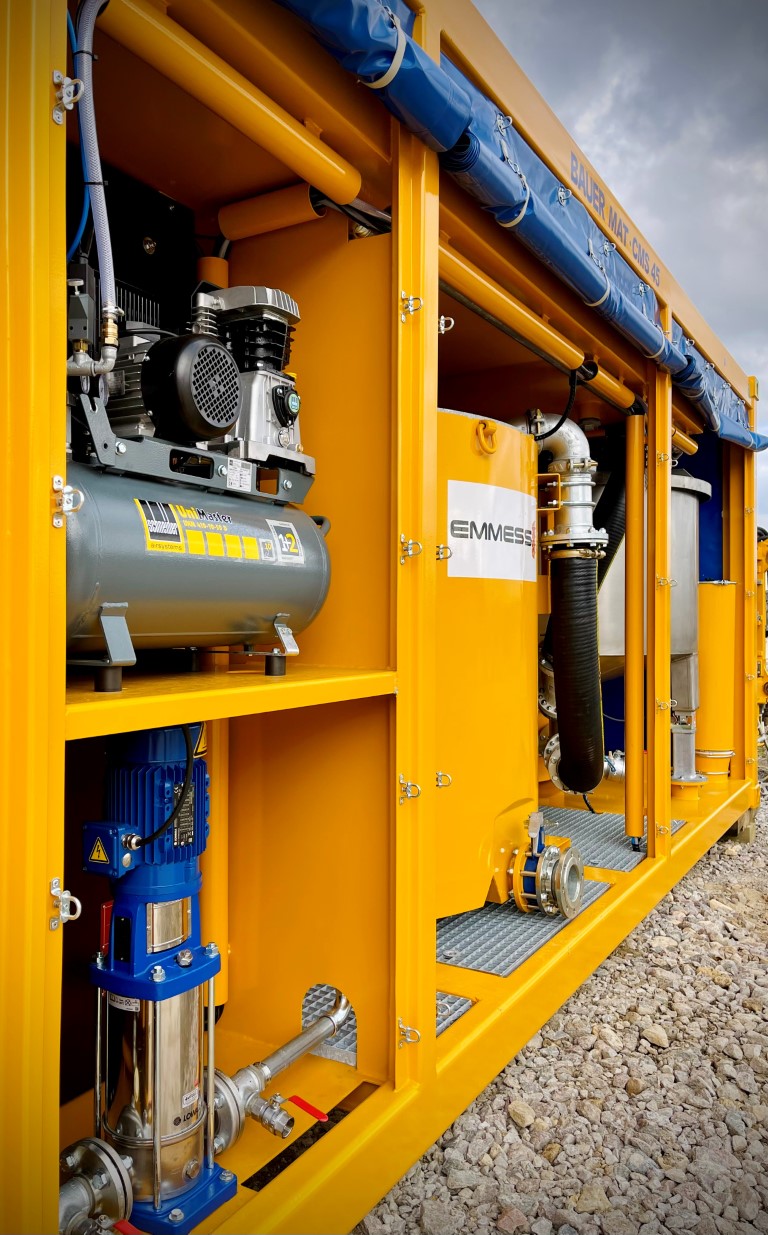

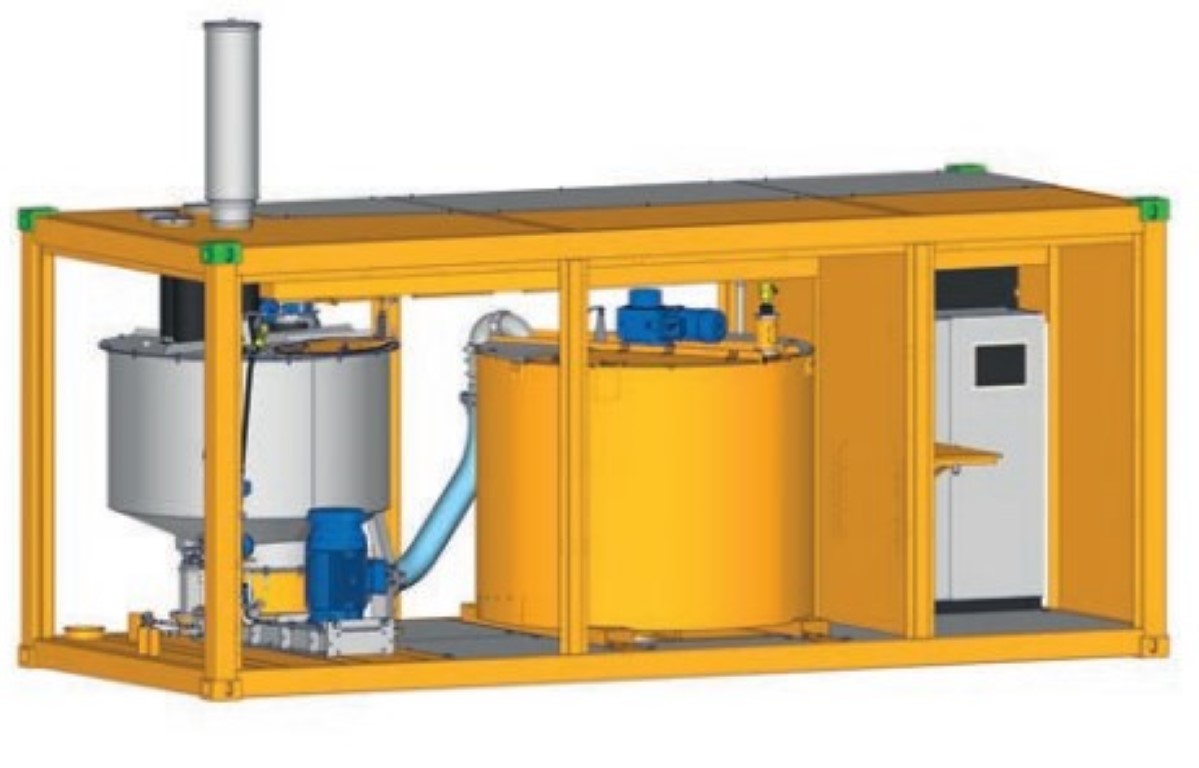

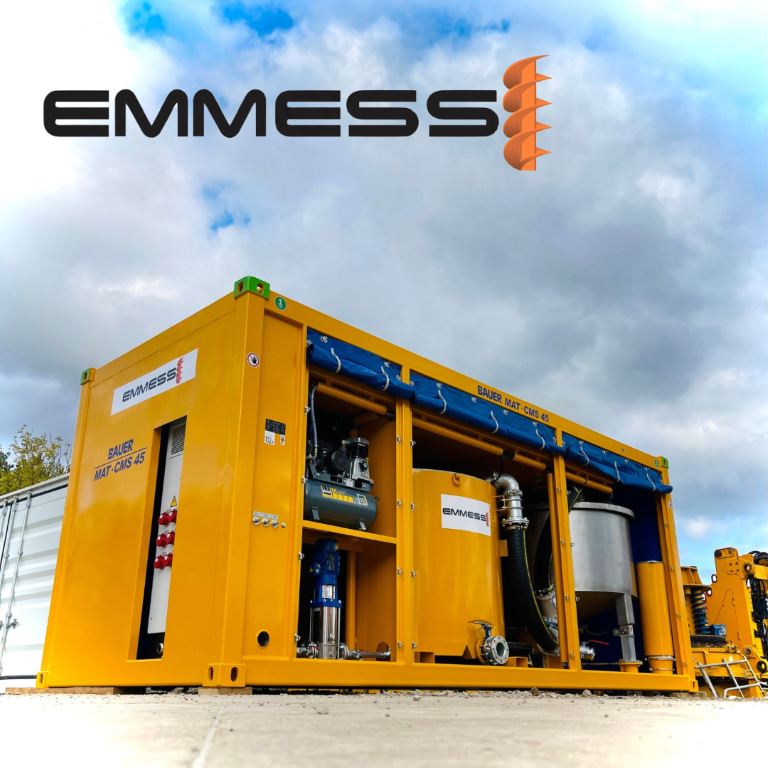

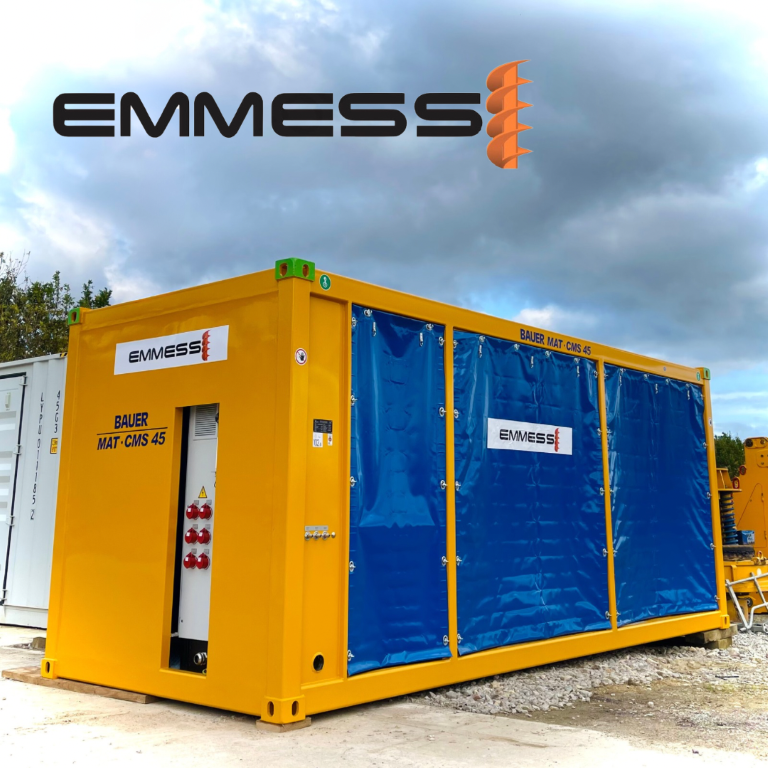

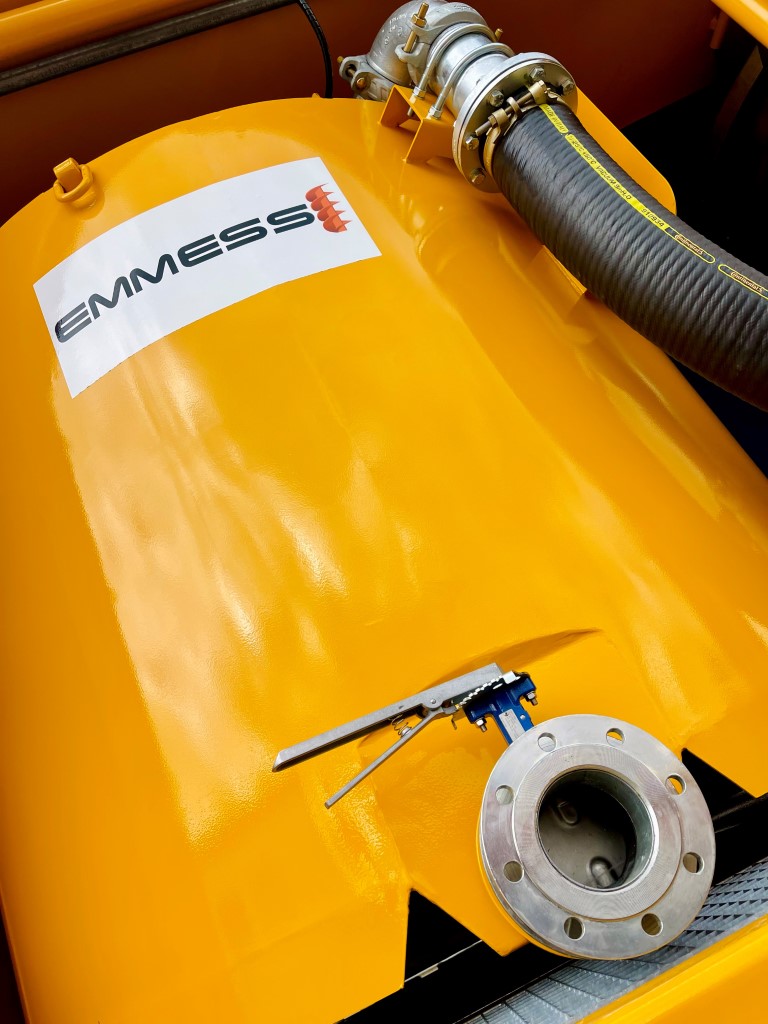

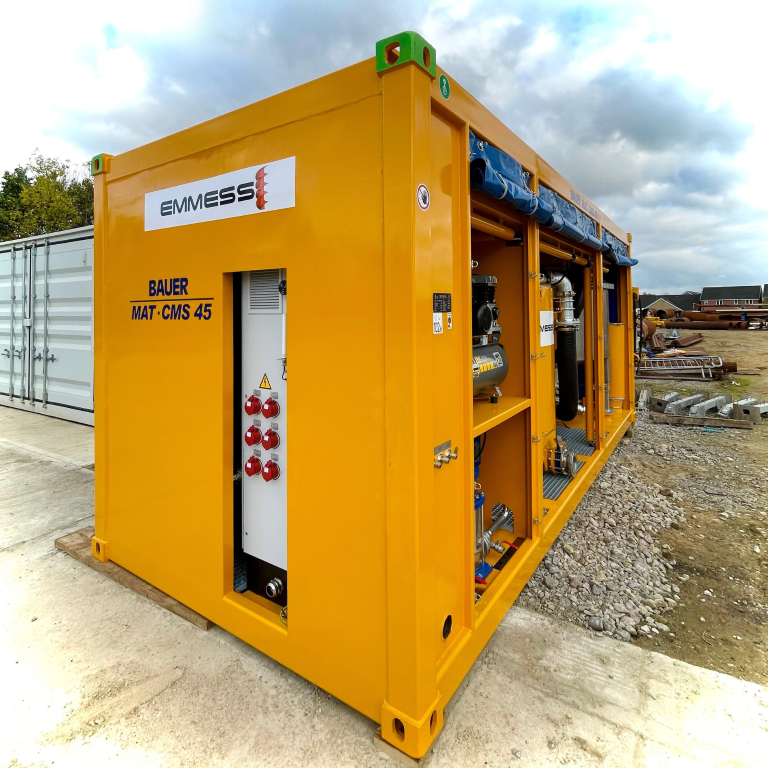

Containerised Mixing System

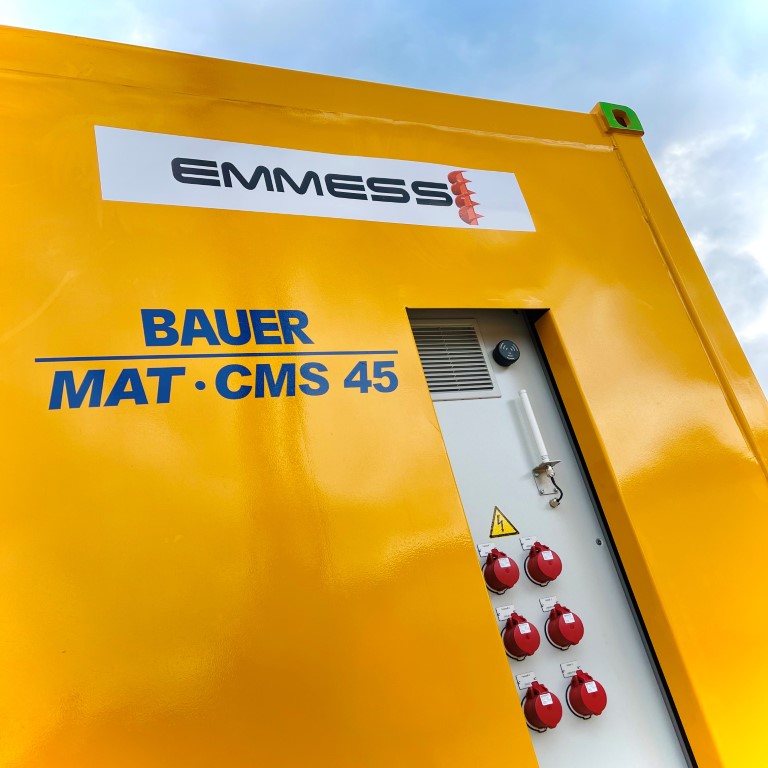

BAUER - CMS 45

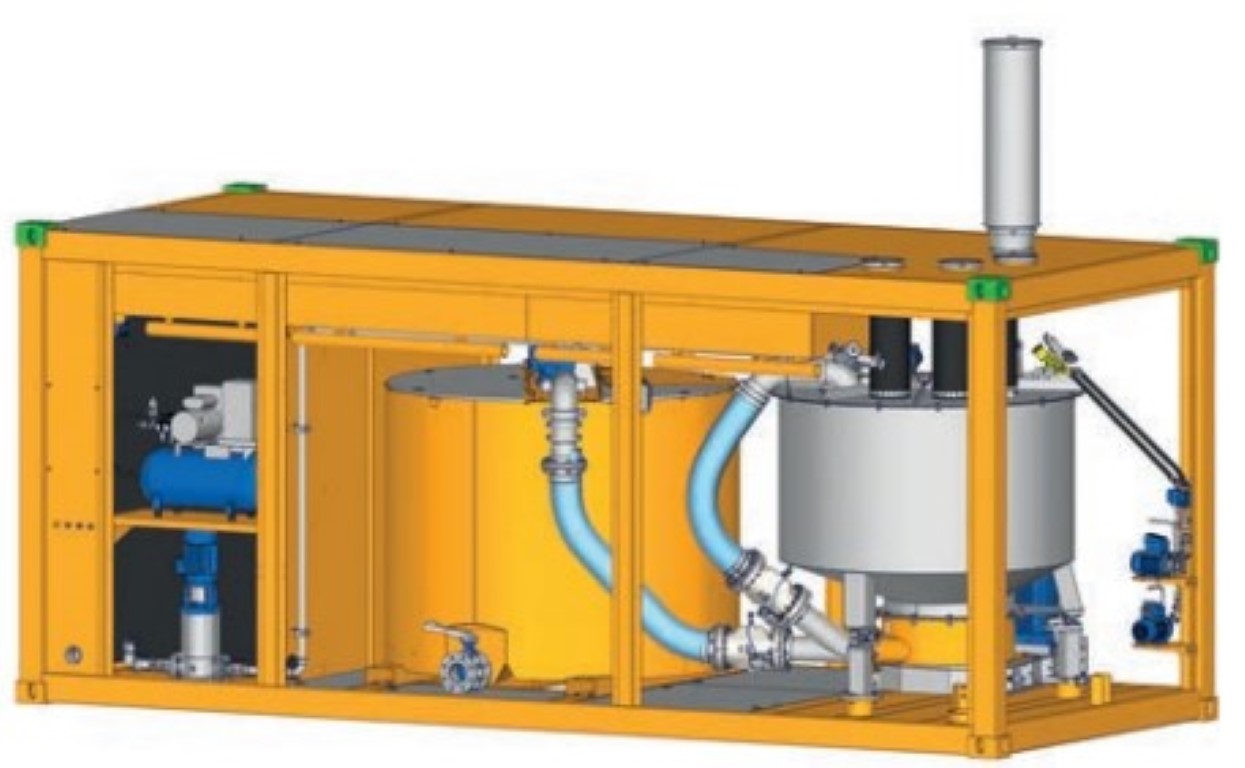

The BAUER CMS 45 Containerised Mixing System is an ultra-compact 20ft containerized unit designed for rapid setup, offering both soft and hard shell options for noise reduction.

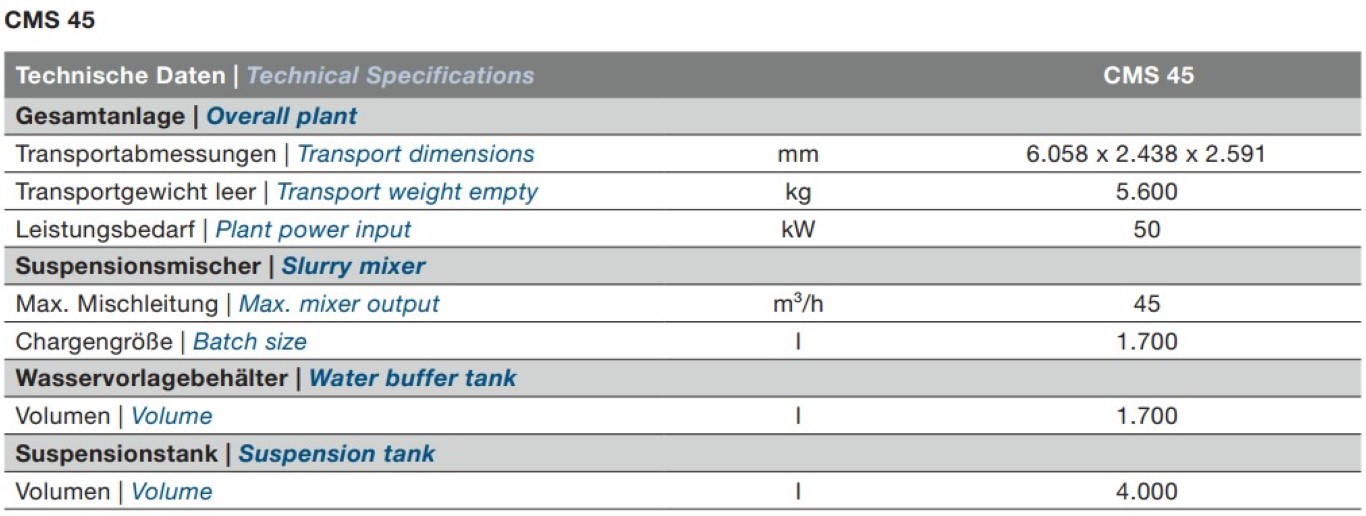

Specifications
- Extremely compact design, completely installed in a 20ft-Container for shortest possible set-up time
- Soft or hard shell version possible for noise reduction
- CSC certification optional – SPS control with touch screen and intelligent self-learning dosage
- Remote monitoring for data transfer
- Up to 10 different mixtures preadjustable
- Procession of up to 3 solids, 1 liquid and 2 additives possible
- Stepless level monitoring via radar sensors
1 Available
